Database Management System

Drawbacks of using file systems to store data

1. Data redundancy and inconsistency

• Multiple file formats, duplication of information in different files

2. Difficulty in accessing data

• Need to write a new program to carry out each new task

3. Data isolation - multiple files and formats

4. Integrity problems

• Integrity constraints should be implemented in program code rather than stated explicitly
• Hard to add new constraints or change existing ones

5. Atomicty of updates

• Failures may leave the database in an inconsistent state

6. Concurrent access by multiple users

• Concurrent access needed for performance
• Uncontrolled concurrent access can lead to inconsistencies.

7. Security problems

• Hard to do access control

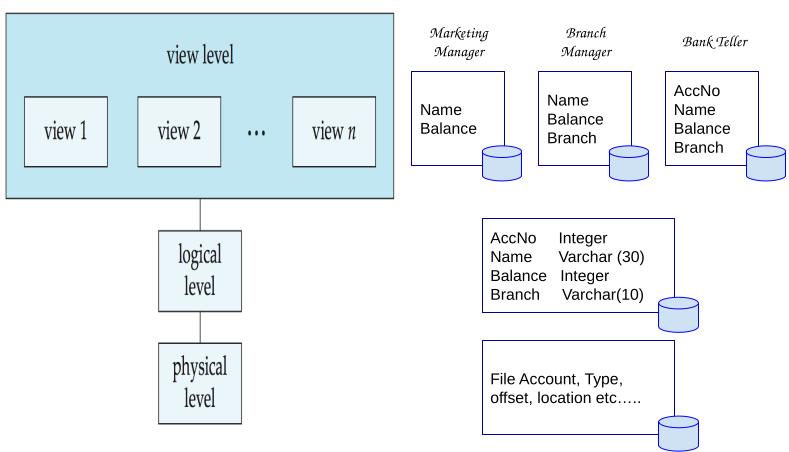

Levels of abstraction

1. Physical Level: Described how a record is stored
2. Logical Level: Describe the data and relations
3. View Level: Hiding details of data types

Instances and Schemas

1. Schema: Logical structure/plan of the database
   1. Physical Schema
   2. Logical Schema
2. Instance: Content of the database in a particular point in time

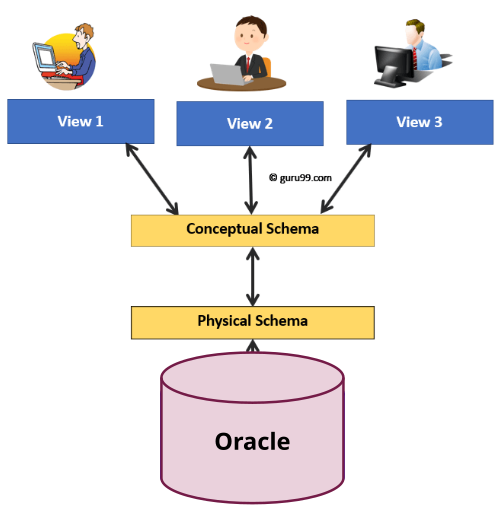

Physical Data independence

Ability to modify physical schema without changing logical schema

Data Models

• Relational Model
• Entity-Relationship Data model
• Object-Based data model
• Semistructured data model (XML)

Relational Model

Data Manipulation Language (DML)

• Languages for accessing and manipulating data
• DML is also known as query language
  • eg: SQL
• Two classes
  • Procedural: Tell what data and how to get data
  • Declarative: Tell what is needed without telling how

Data Definition Language (DDL)

• Used to define database schema

create table instructor (
	ID char(5),
	name varchar(20),
	dept_name varchar(20),
	salary numeric(8,2))

• DDL compiler generates a set of table templates stored in a data dictionary
• Data dictionary containes metadata
  • Database Schema
  • Integrity constraints
    • Primary key
    • References
  • Authorization

Database Design

• Logical Design: Designing schema
• Physical Design: Design Physical layout of database

Design Approaches

• Normalization Theory
• Entity Relationship model
  • Modeled as a collection of entities and relationships

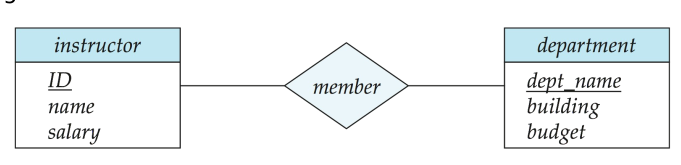

Entity Relationship model

Object-Relational Data model

• Relational model uses flat and atomic values
  • eg: numbers, strings
• Object-relational model uses object orientation and deal with added data types.
• Allow non atomic types including nested relations

XML : Extensible Markup Language

• Ability to create nested tag structures

Database Engine

1. Storage Manager
2. Query Processing
3. Transaction Manager

Storage Management

• Manage efficient storage and retrieval of data
• Provide an interface between low level data stored in the database and the application programs.

Query Processing

1. Parsing and translation
2. Optimization
3. Evaluation Alternative ways of evaluating a given query.

• Equivalent expressions
• Different algorithms for each operation

Transaction Management

• Transaction : A collection of operations that performs a single logical function
• Transaction management make sure that the database stays in a consistent state despite system / transaction failures.
• Concurrency control controls the interaction among concurrent transactions

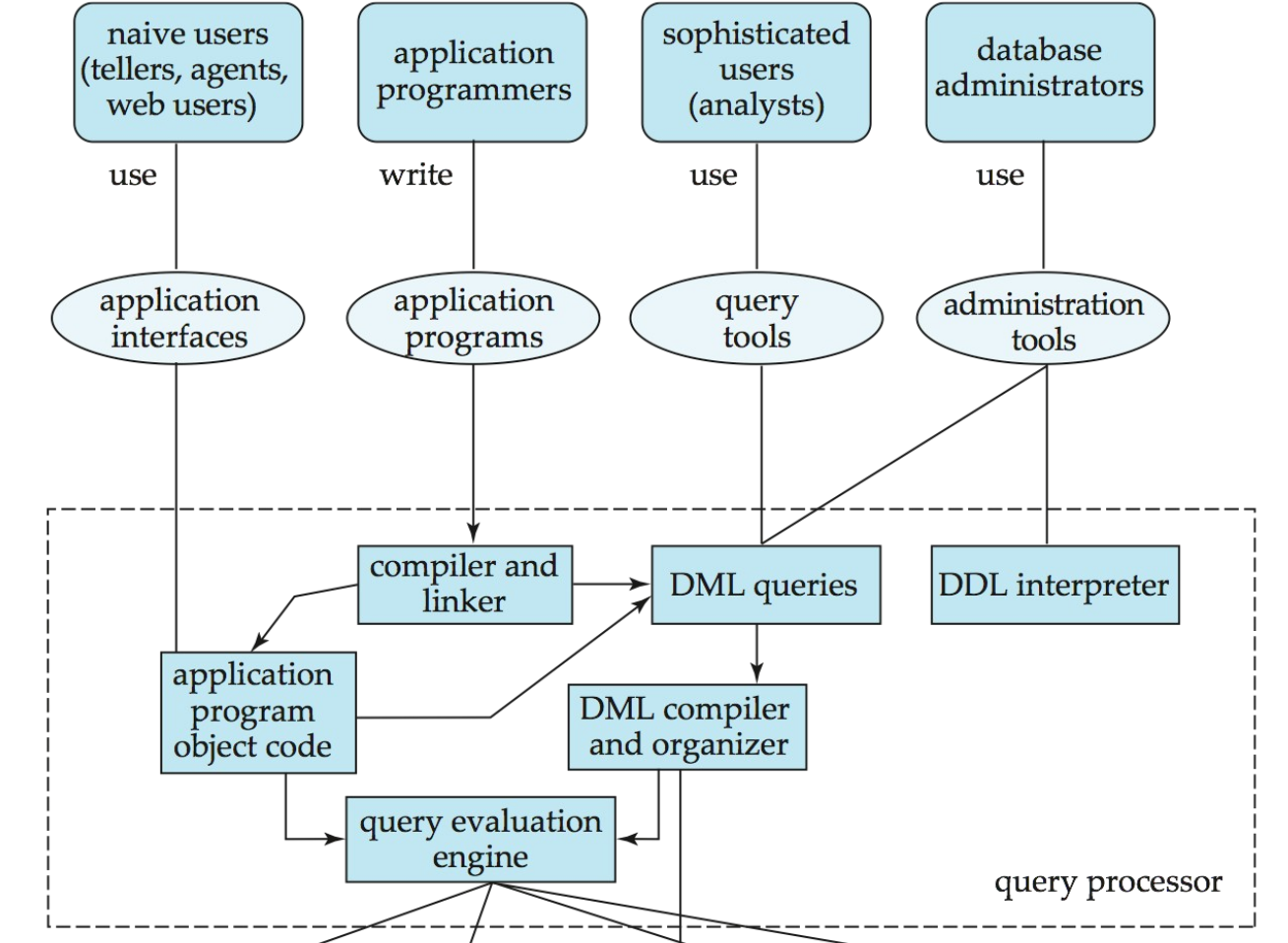

Database Users and Administrators

• Naive Users
• Application Programmers
• Sophisticated users (analysts)
• Database Administrators

Database Architecture

Architecture of a database depends on the underlying system

• Centralized
• Client-Server
• Parallel (multi-processor)
• Distributed
